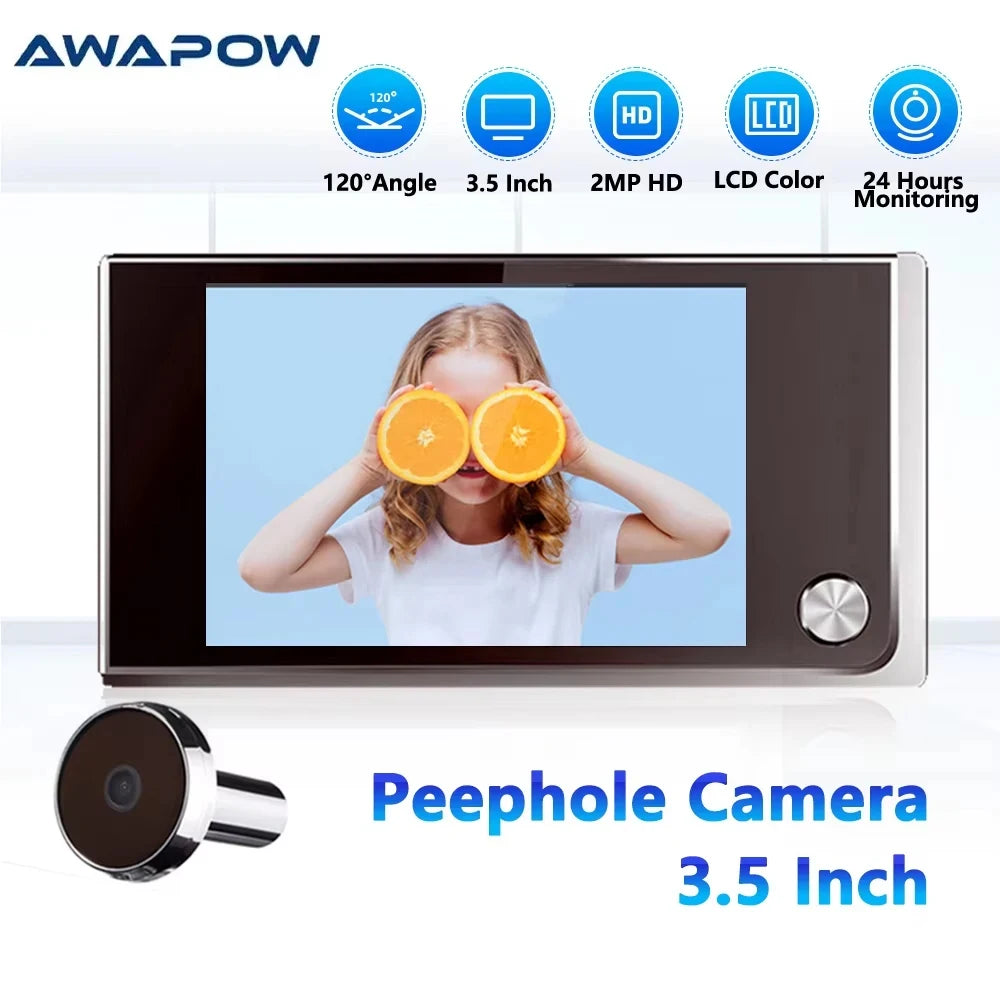

Awapow Door Peephole Camera Video Doorbell 3.5 Inch Digital Door Viewer 120° LCD Color Screen Monitor Home Security No Need WiFi

Note:

1. Please connect the cable of the camera first, and then turn on the doorbell. Otherwise the screen will not be displayed.
2. Please install 4* AAA batteries before use, it is better to use new batteries.
3. This is not a WiFi peephole doorbell and can not connect to your mobile phone.
4. Applicable to door thickness: 35mm-100mm.
5. Applicable hole diameter for doors: 14mm-28mm.

Description:

Type: Peephole Doorbell
Color: Black or Silver + Black
Sensor: 2 Mega CMOS Sensor
Screen Size: 3.5-inch LCD Screen
Function: Energy Saving, Low Power Alert
Power Supply: 4 x AAA Batteries (Not Included).
Indoor Parts Size: About 118 * 63 * 18mm
Outdoor Parts Size: About 32 * 32 * 8mm
Packing Size: About 150 * 140 * 45mm
Door Hole Range: 14-28mm
Door Thickness Range: 35-100mm
Package Weight: 192g

120° Wide-angle Lens:

Equipped with a 120° wide-angle lens, clear insight into the details outside the door to reduce safety hazards.

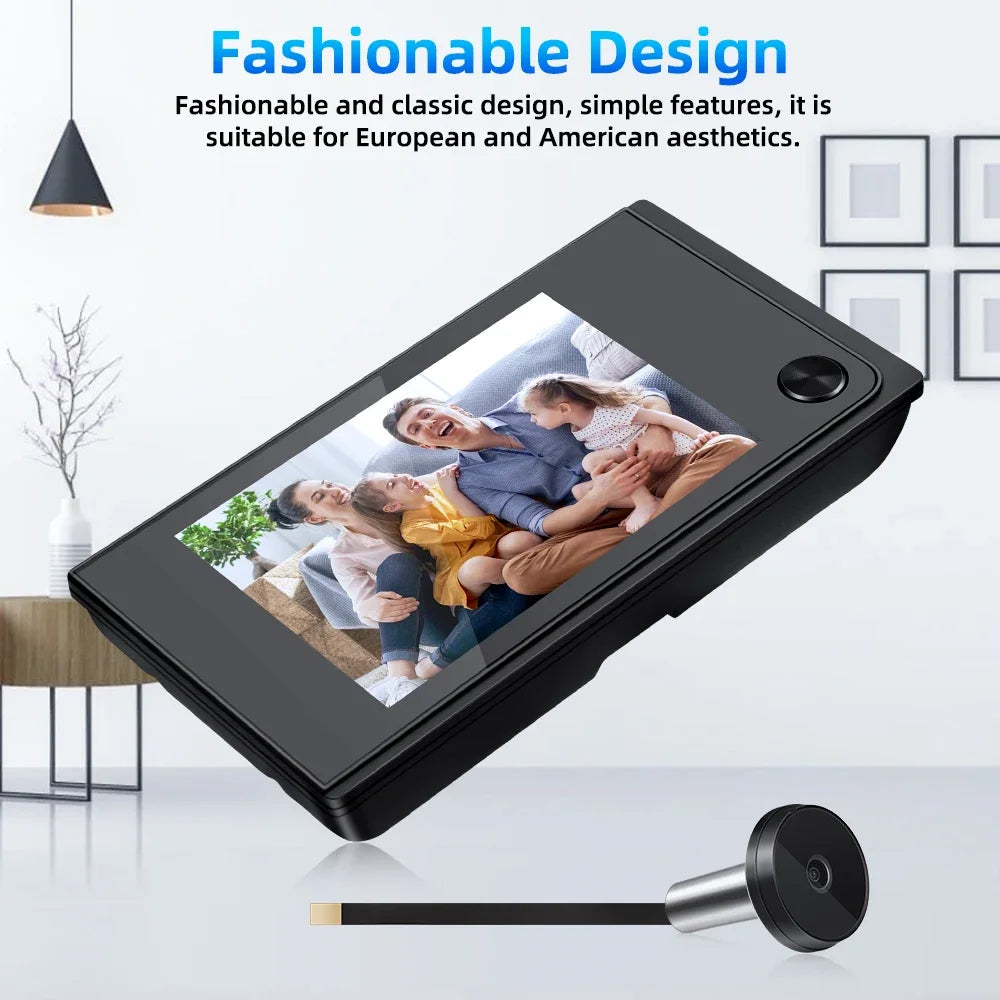

Fashionable design:

Fashionable and classic design, simple features, it is suitable for European and American aesthetics.

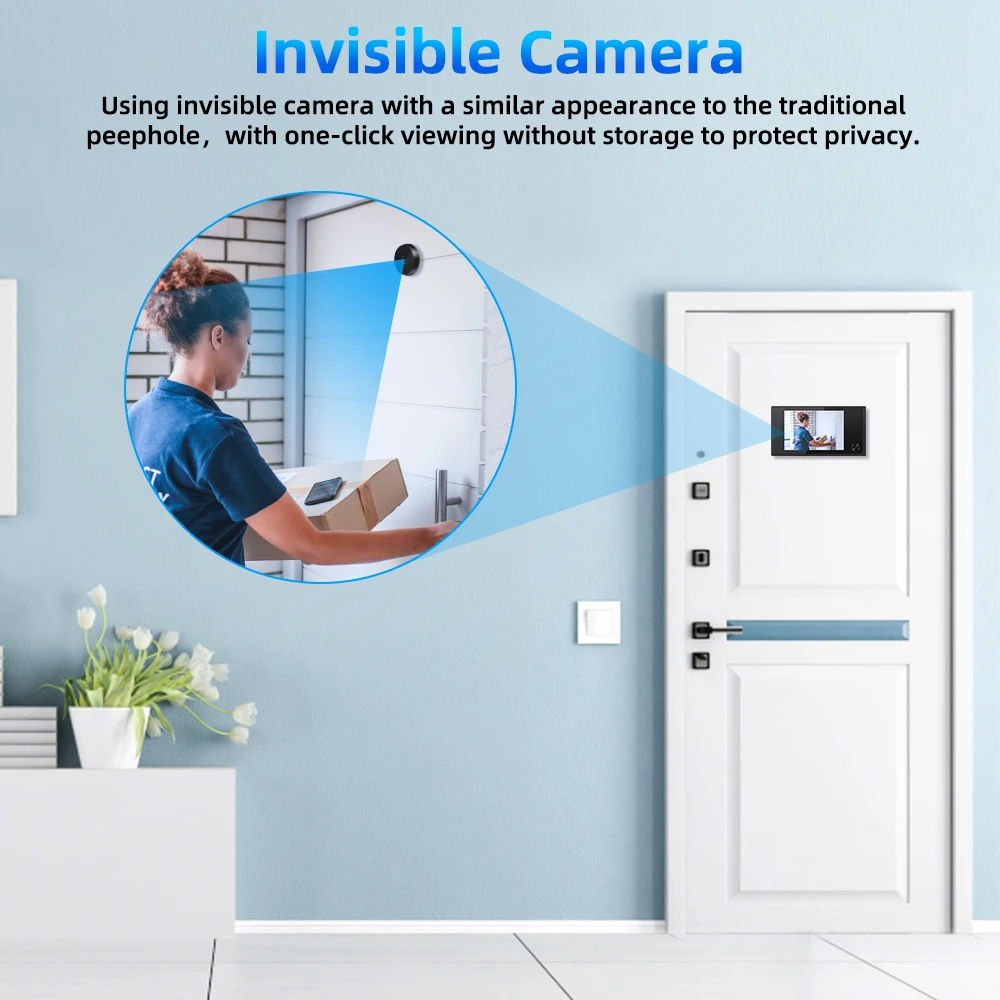

Invisible camera:

Using invisible camera with a similar appearance to the traditional peephole，with one-click viewing without storage to protect privacy.

HD Megapixel:

With a professional security camera, you can restore picture details better, giving you a great visual experience.

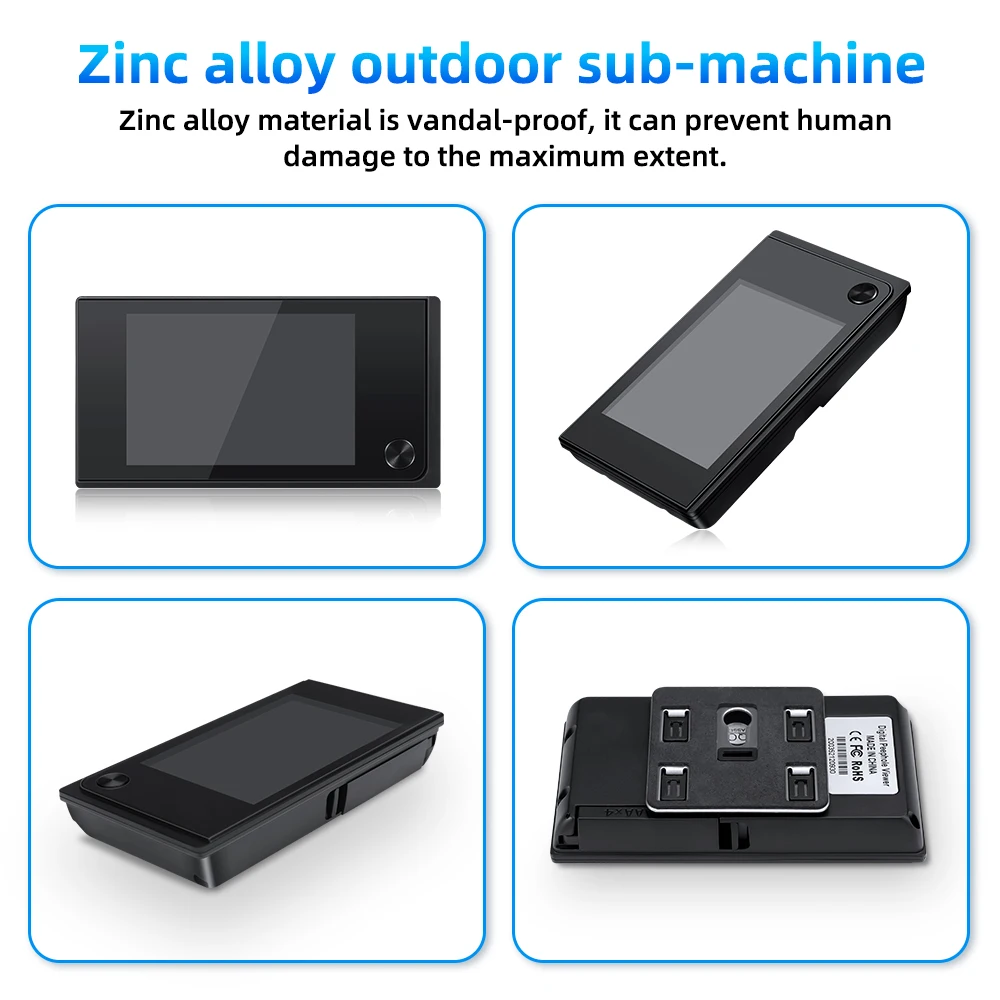

Zinc alloy outdoor sub-machine:

Zinc alloy material is vandal-proof, it can prevent human damage to the maximum extent.

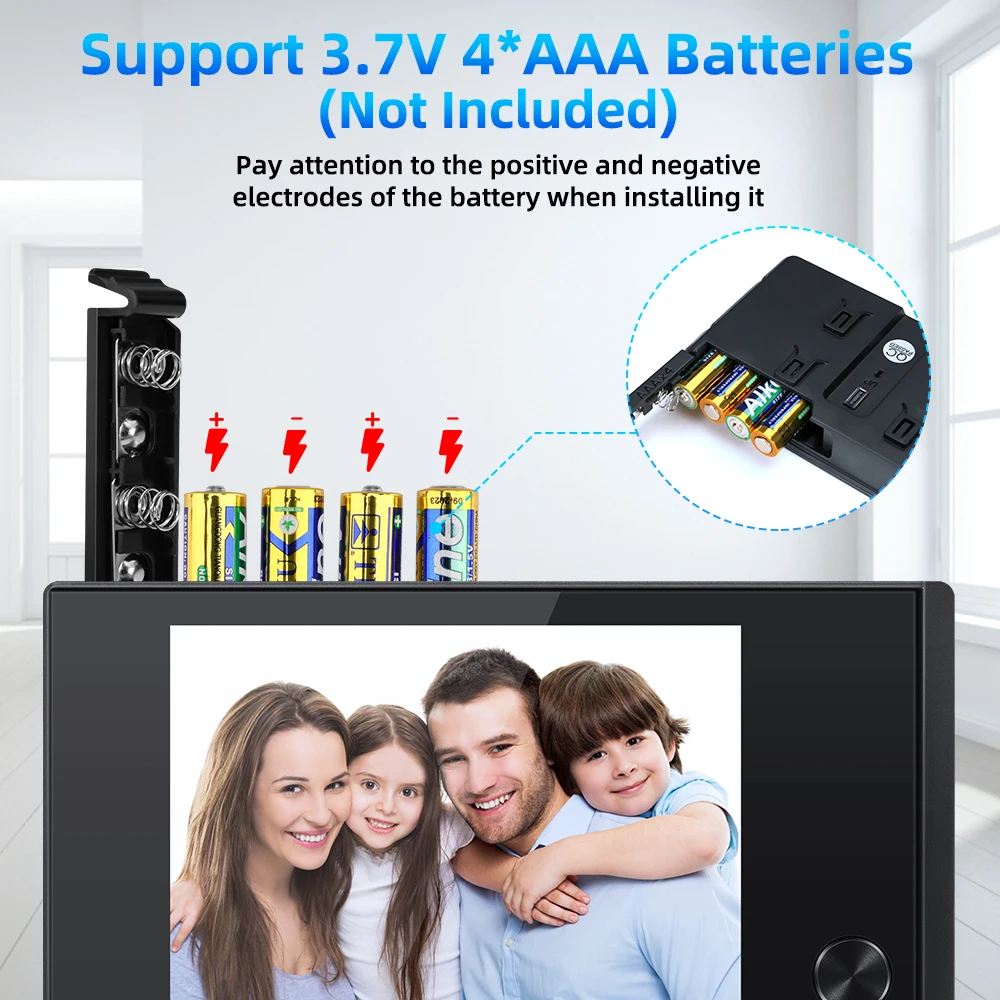

Support 3.7V 4*AAA Batteries (Not Included)

Pay attention to the positive and negative,electrodes of the battery when installing it

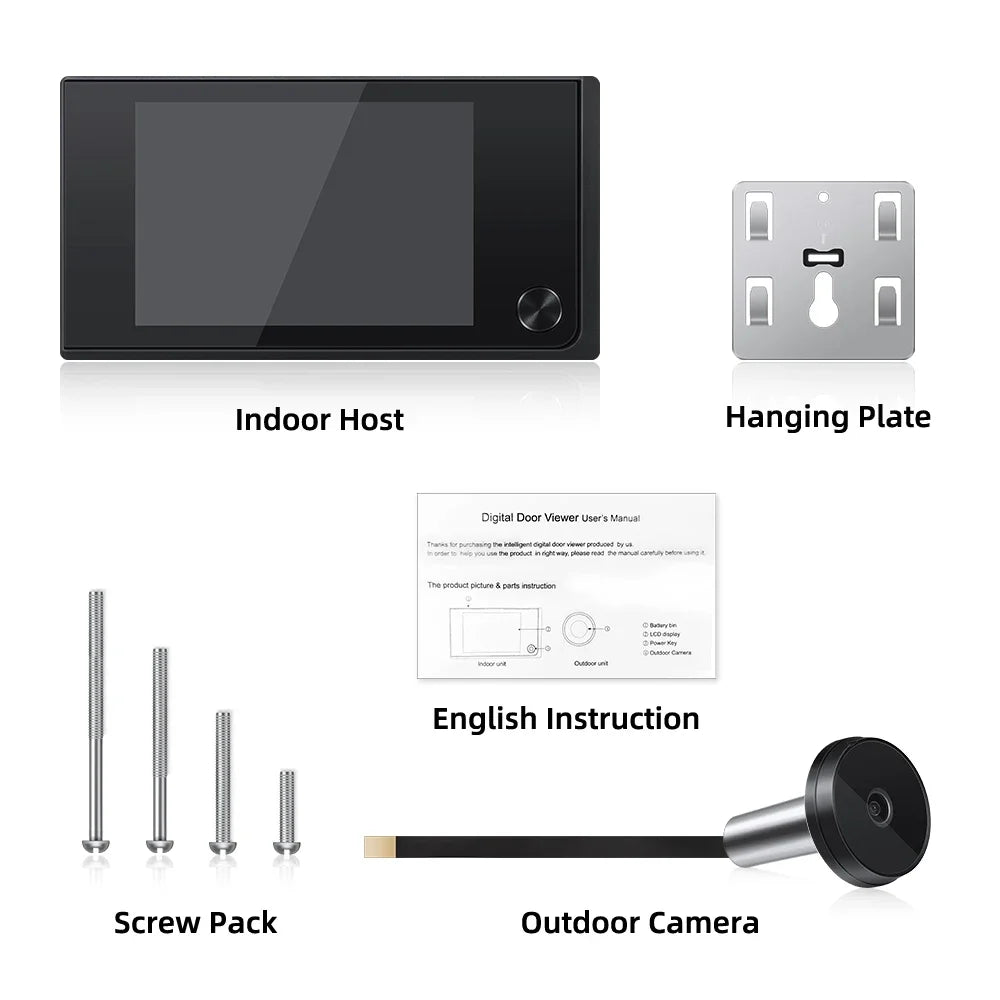

IN THE BOX

1 * Indoor host

1 * Outdoor cat's eye camera

3 * screw (L/M/S)

1 * Metal hanging board

1 * User Manual

Product Size

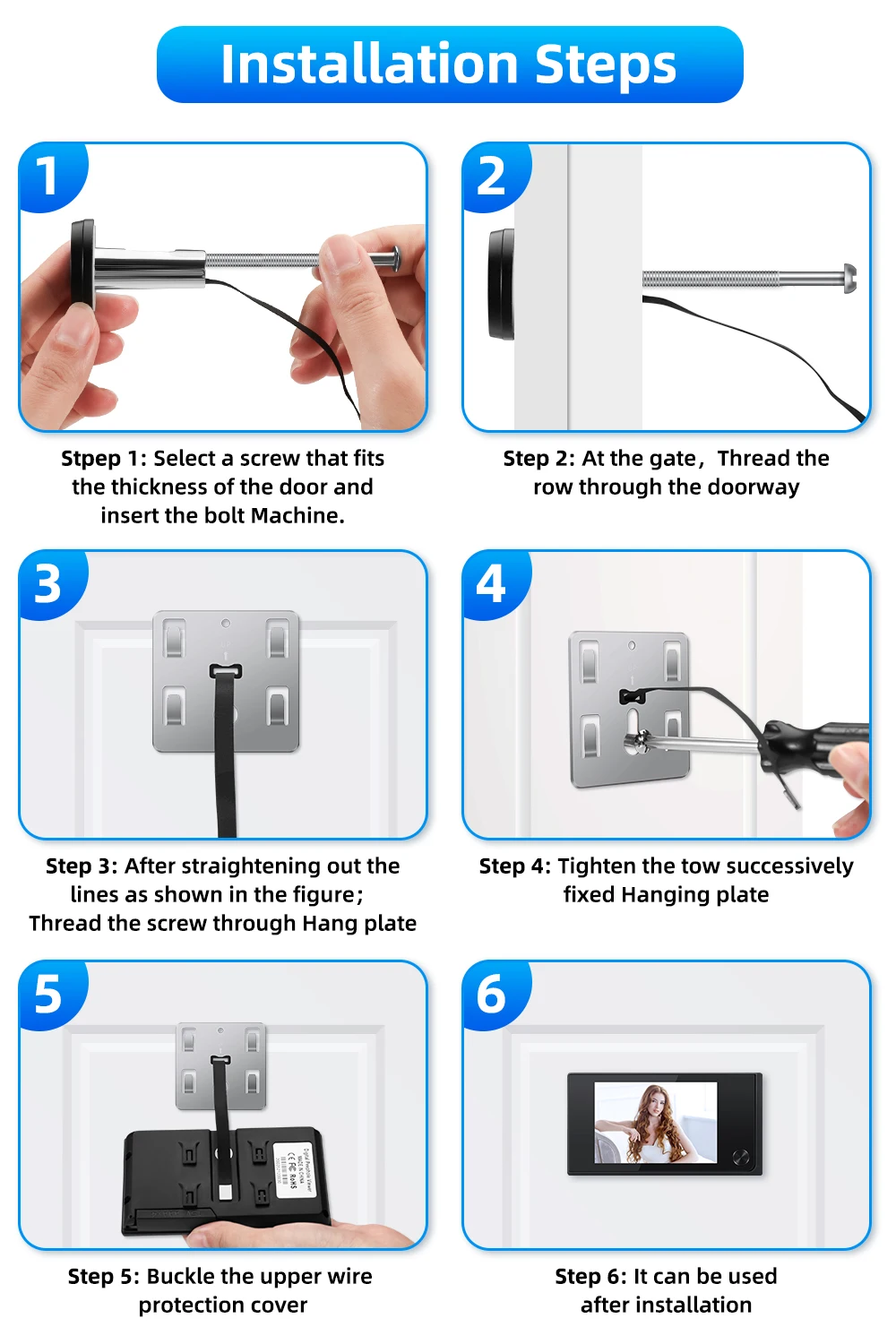

Installation Steps

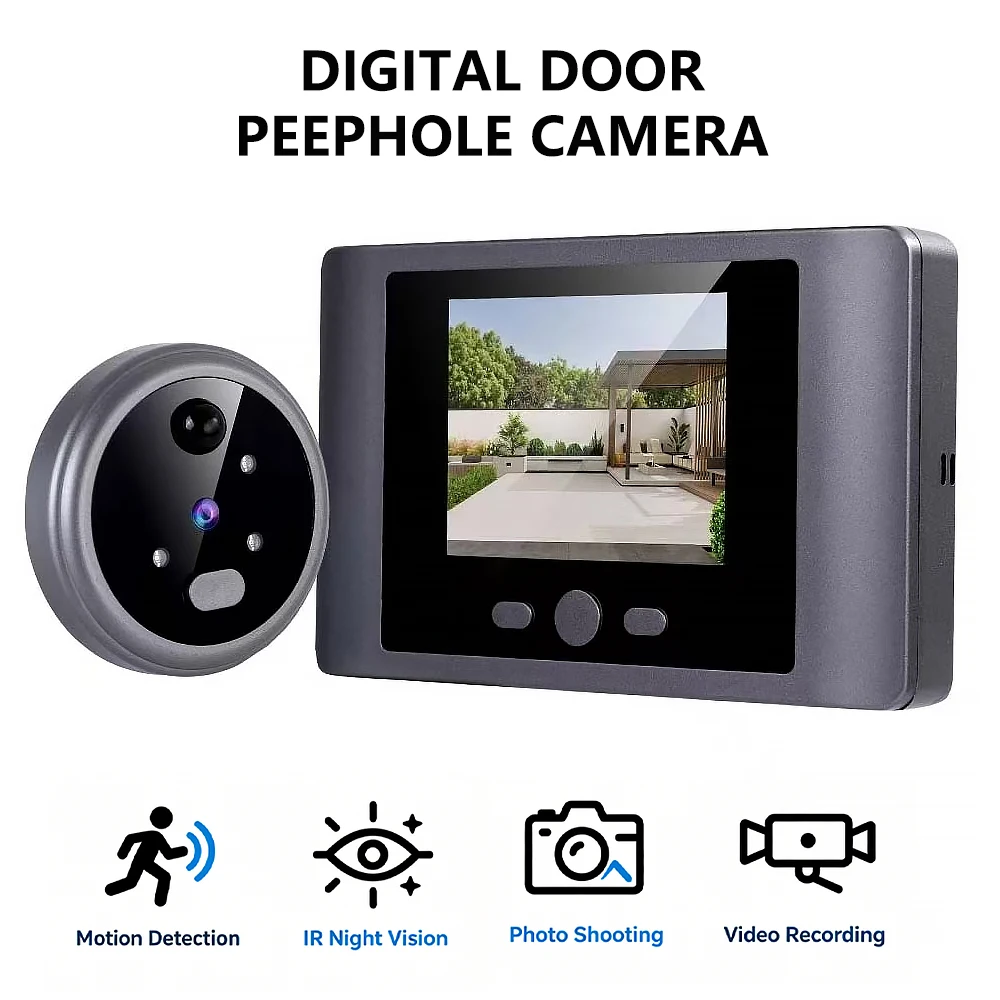

Awapow 2.8" LCD Digital Door Peephole Camera

Awapow 2.8" LCD Digital Door Peephole Camera Wireless Video Doorbell Door Viewer Motion Detection Night Vision Support Video & Photo Record

Product Features:

1. PIR Human Motion Detection: Precisely detects any movement of the human body. Once motion is detected, it automatically takes photos and records videos.

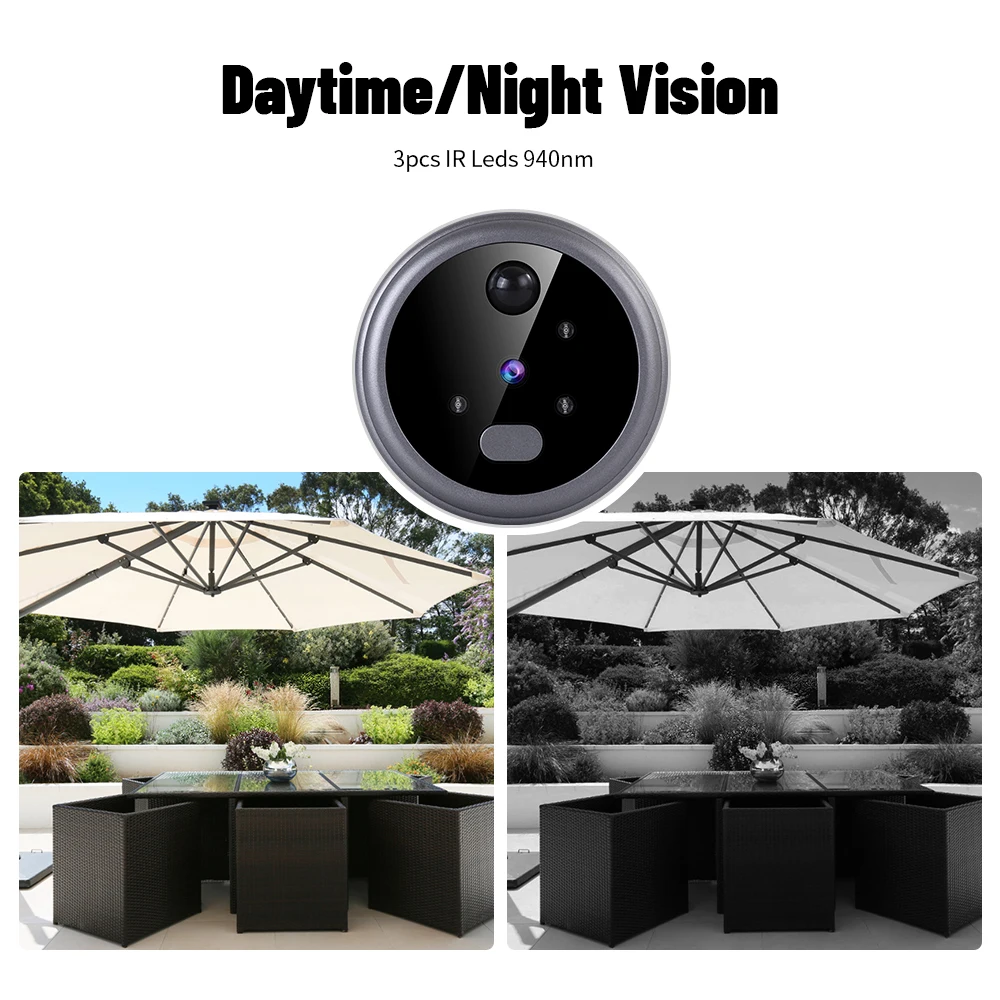

2. All-weather Infrared Night Vision: Clear images can be captured even in low-light conditions. 24-hour outdoor surveillance.

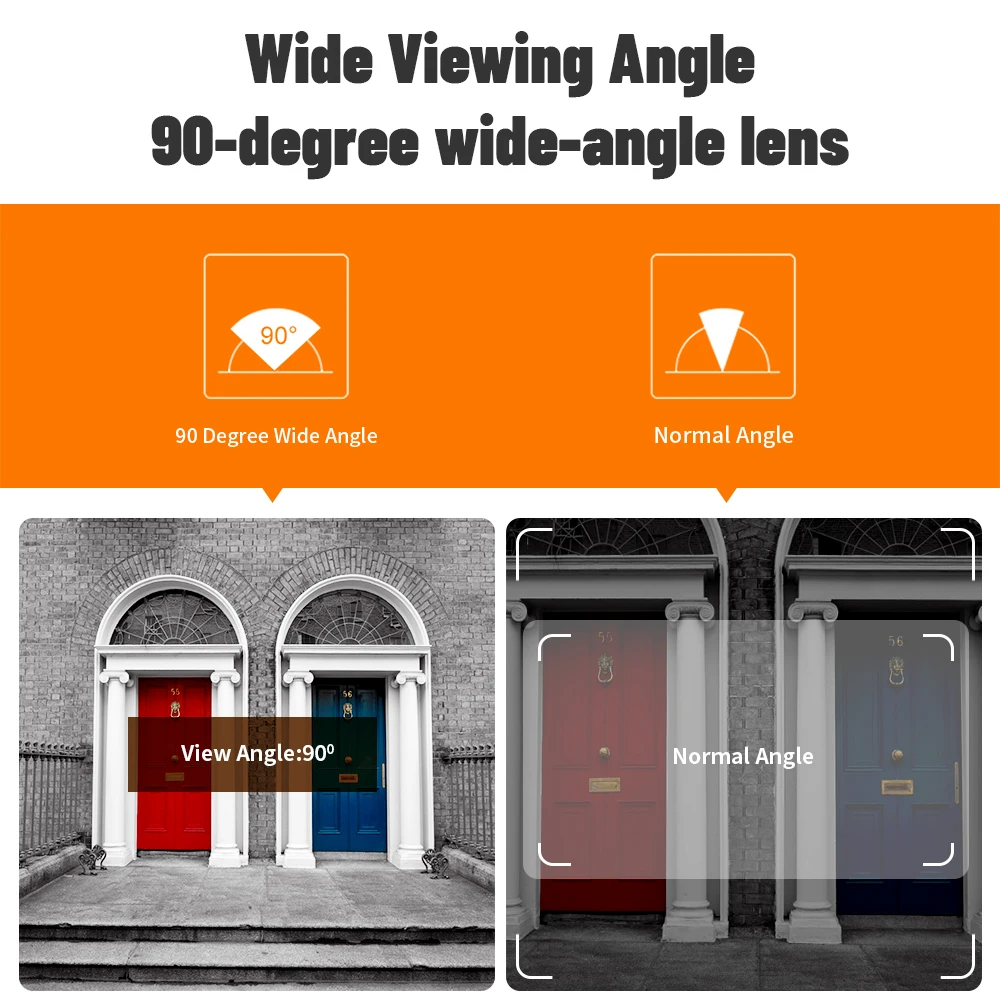

3. 90° Wide-angle Lens: Covers the area in front of the door, reducing monitoring blind spots.
4. Multiple ring tones available and volume adjustable from 0 to 100 dB.
5. Low battery alert: Automatic warning when battery level is low.

NOTE：

1. This door viewer does not connect to the Internet.
2. Please use a 5V 1A charging plug for charging；does not support fast charging
3. Make sure there is an existing peephole on your front door before purchasing, otherwise, you have to drill that one.

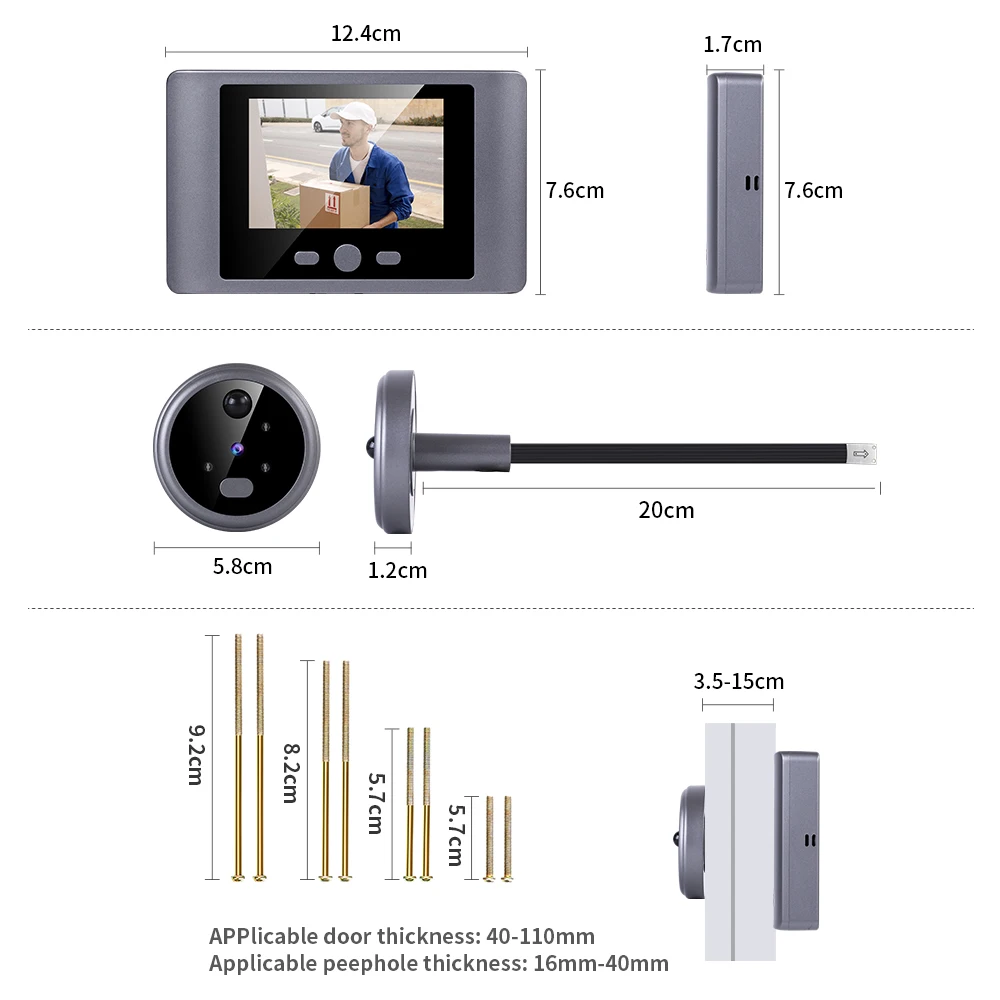

Door thickness requirements:40-110mm;
Hole diameter requirements:16-40mm

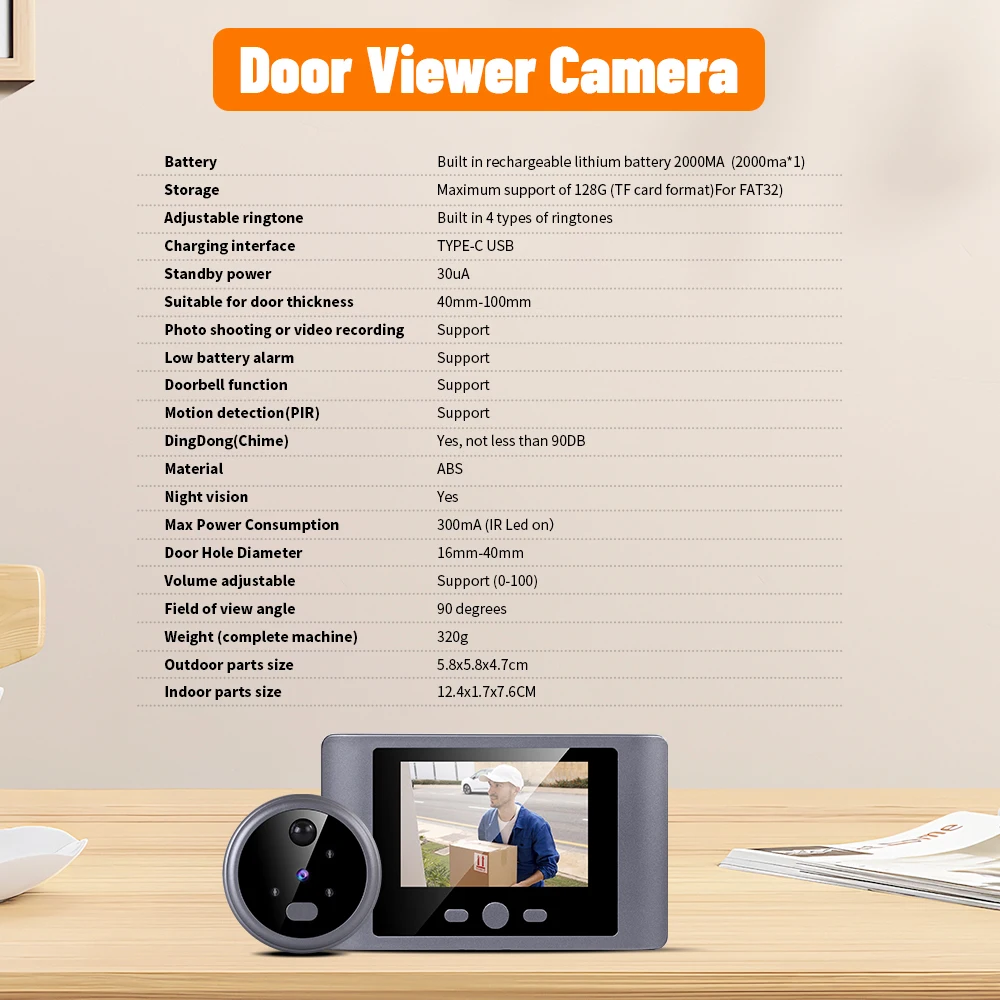

Product Specifications:

Material: ABS + Aluminum, Gray

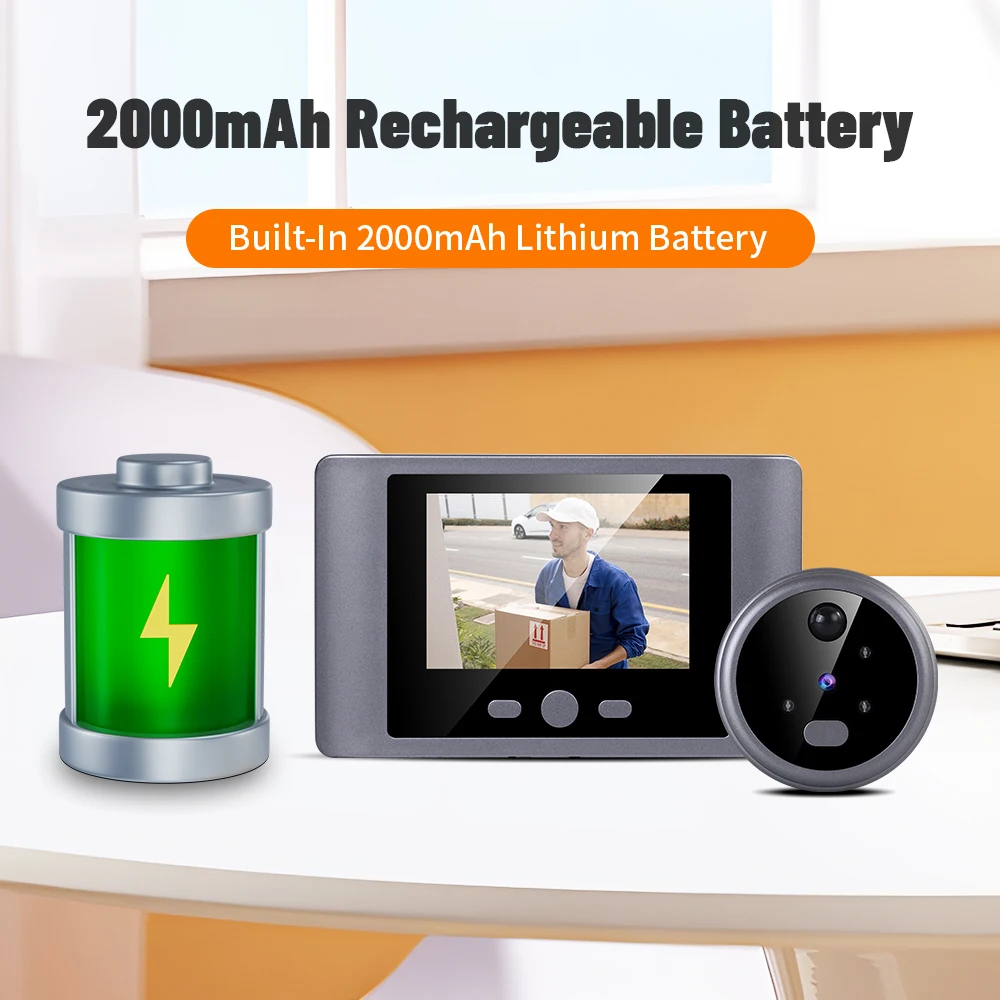

Battery: Built-in 2000mAh rechargeable lithium battery, USB-C charging port;
Storage: Maximum support 128G (TF card format is FAT32)
Standby Power Consumption: 30uA
Maximum Power Consumption: 300mA (Infrared light, screen on)
Door Hole Compatibility: Suitable for door thickness 40mm - 110mm; suitable for cat window aperture 16mm - 45mm

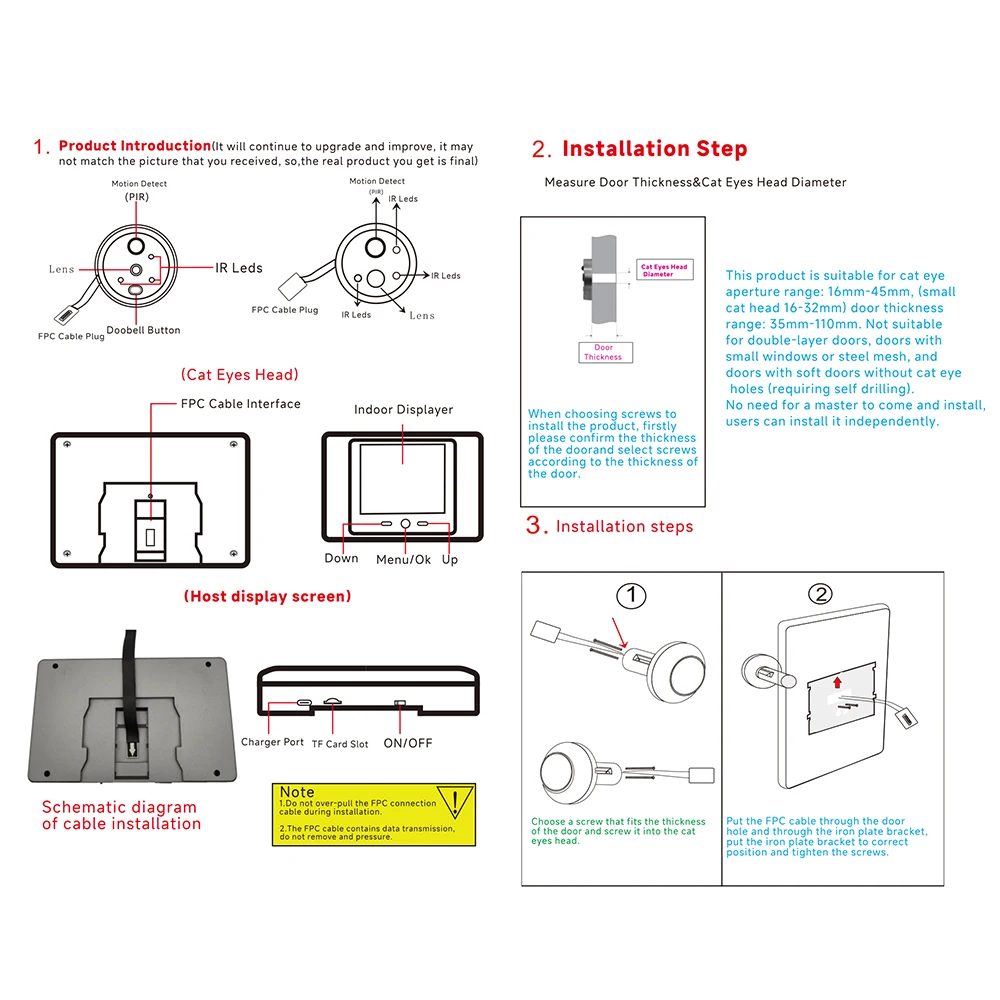

Product Work Introduction:

1.Photo/Video recording（need TF Card）.
If you set photo record, when someone press doorbell, or pir detect movement, it can save the photo.
If you set the video record, when someone press doorbell, or pir detect movement, it can record the events.

2.Date Setting
You need to set the date first when you turn on the doorbell.

3.Automation Shut Down Setting
You can set " Close" / "10 Seconds"/20 Seconds"/"30 Seconds"
If you set " Close", the indoor screen will always on. (It will consume more power.）
If you set "10 Seconds"/20 Seconds"/"30 Seconds",when pir detected or someone pressdoorbell, the monitor will on and auto off after "10 Seconds"/20 Seconds"/"30 Seconds".

4. Laguange Support
This doorbell support 4 languages: Chinese, English, Russia and Spanish

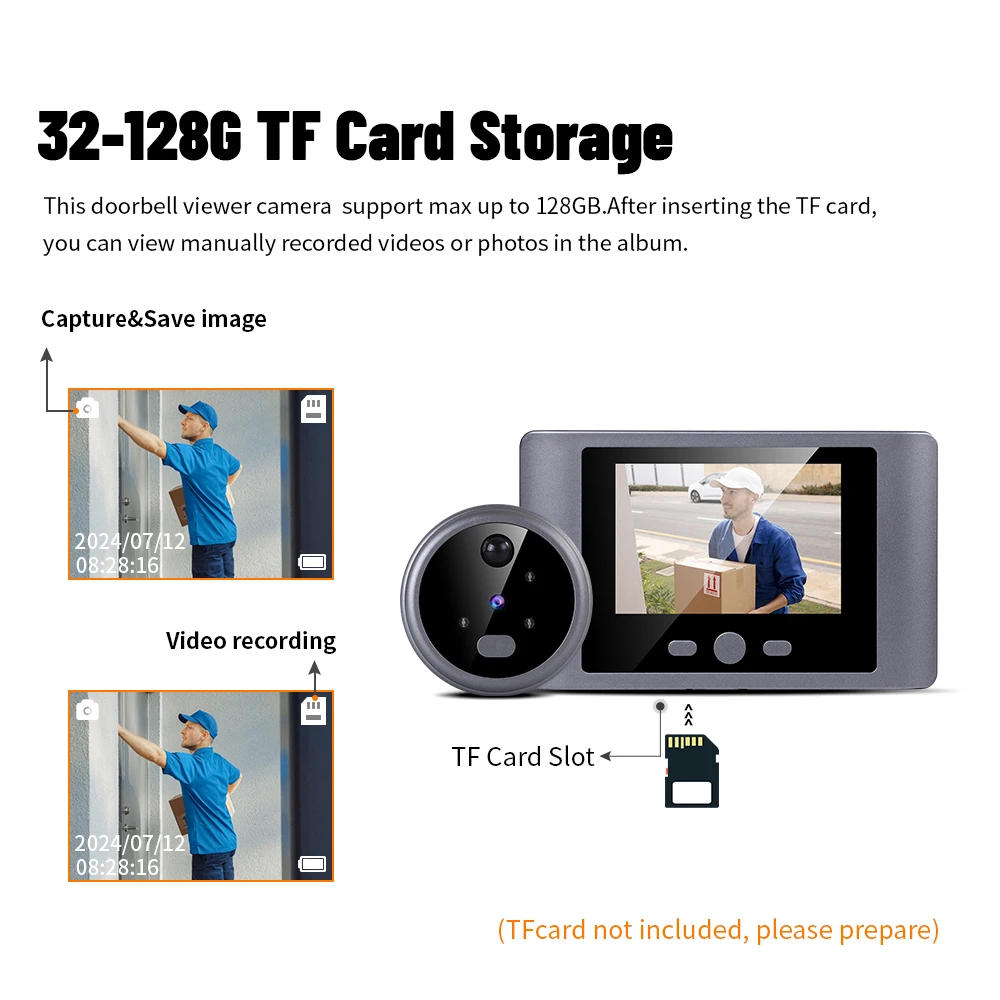

5. TF Card Capacity
This doorbell screen support insert the TF Card, the TF Card capacity max. 128G( Not Include).

6. NO Disturbing Setting
You can set "Close" or " Open". If you set the "Open", someone press the door camera, you will not hear the ringtone

7. Motion Detection
This doorbell peephole camera support PIR detection. You can set the motion detection ON/OFF

8. Ringtons Setting
It is support four ringtons and you can set the ringtons sound with Low/Middle/High three level to choose.

9.LCD Switch setting
You can set LCD switch "Open" /"Close".
If you select the "Close", the screen will not on if the pir detected or press the doorbell button. Only hold the screen Menu/OK button more than 1 seconds to wake up the screen.
